On these pages you will find the list of samples flown on Mir. For more information about data and results, please contact AZ Technology. Note that paints produced by AZ Technology are available for purchase.
*Note: Z-93 is no longer produced, but AZ Technology produces a space-tested version, AZ-93.
Flight Samples:

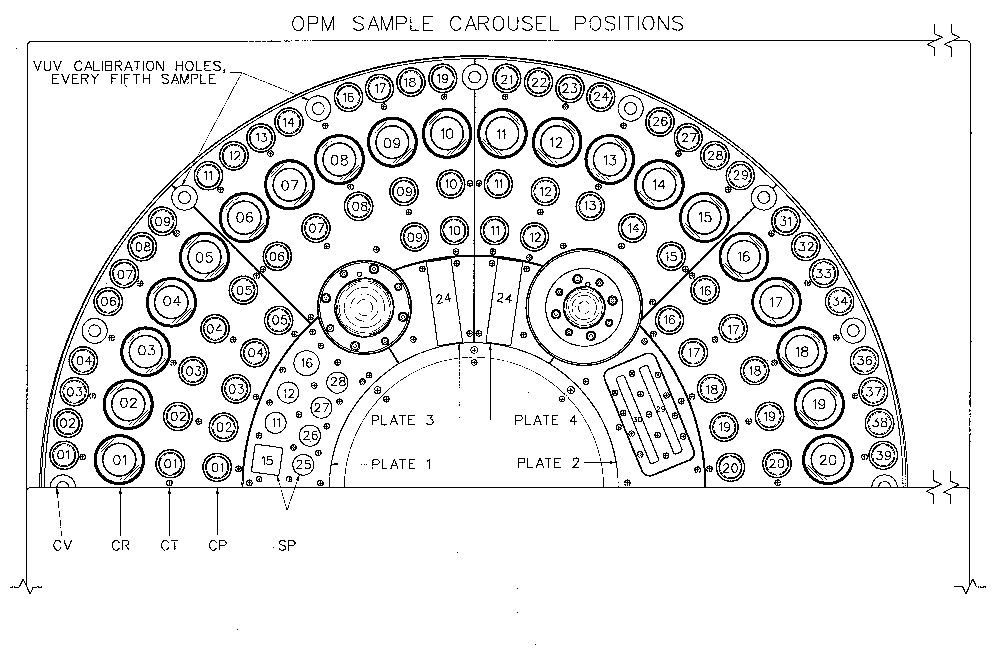

The flight samples were exposed to the Mir induced and natural environments. Once a week, seventy-two samples were rotated under the measurement apertures of the three instruments for characterization. The remaining twenty-six samples are characterized by pre- and post-tests only. Samples were chosen through an open sample selection process from among 228 samples submitted by 19 organizations. The flight sample selections are listed below.
| OPM FLIGHT SAMPLES**The AZ Technology paints listed are available for purchase. Follow the links for details on specs. | ||
| Carousel Position | Description | Supplier |
| Reflectometer Samples | ||
| CR01 | Thermal Control – COR – Triton | NASA MSFC |
| CR02 | TMS-800-IY, yellow | AZ Technology, Inc. |
| CR03 | AZWEC-1I (MST450-ICW), ESD white (see AZ-2000-IECW and AZ-2100-IECW) | AZ Technology, Inc. |
| CR04 | AZW/LA-II (MST600-IUCW), low alpha white | AZ Technology, Inc. |
| CR05 | Optical Solar Reflector | AZ Technology, Inc. |
| CR06 | AZ-93 (AZ’s version of Z-93P) over MLP-300 primer | AZ Technology, Inc. |
| CR07 | Thermal Control Paints – Z-93 w/primer and Teflon overcoat (Z-93 no longer produced. See AZ-93) | NASA MSFC |
| CR08 | TP-co-2, silicate on ZnO & liquid glass base | RSC Energia, Moscow |
| CR09 | TP-co-12, silicate on ZnO & liquid glass base | RSC Energia, Moscow |
| CR10 | Chromic Anodized 6061 Aluminum Alloy | Boeing (AL) |
| CR11 | Boric-Sulfuric Anodized 6061 Aluminum Alloy | Boeing (AL) |
| CR12 | Chem film 1A on 2219 Alum. | Rocketdyne |
| CR13 | Z-93CLM55 Thermal control coating (Z-93 no longer produced. See AZ-93) | IIT Research Institute |
| CR14 | Sulfuric Acid Anodized 7075-T7351 | McDonnell Douglas |
| CR15 | Sulfuric Acid Anodized 2219-T851 | McDonnell Douglas |
| CR16 | Z-93P control (see AZ-93) | McDonnell Douglas |
| CR17 | Z93P (see AZ-93) contaminated with silicone 500A | McDonnell Douglas |
| CR18 | Z-93P (see AZ-93) contaminated Tefzel 500A | McDonnell Douglas |
| CR19 | Z93P (see AZ-93) contaminated with silicone 2000A | McDonnell Douglas |
| CR20 | Z-93P (see AZ-93) contaminated Tefzel 2000A | McDonnell Douglas |
| TIS Samples | ||
| CT01 | dc Magnetron Sputtered Optical Coatings-Niobia/Silica | USAF Phillips Laboratory |
| CT02 | dc Magnetron Sputtered Optical Coatings-Zirconia/Silica | USAF Phillips Laboratory |
| CT03 | NAWC-TIS-Diamond like carbon (DLC) on silicon | NAWC |
| CT04 | NAWC-TIS-7/Titanium Diboride | NAWC |
| CT05 | NAWC-Zirconium Diboride on silicon | NAWC |
| CT06 | NAWC-TixByNz film on silicon | NAWC |
| CT07 | NAWC-TIS-1/as-grown, undoped CVD Diamond | NAWC |
| CT08 | NAWC-TixByOz film on silicon | NAWC |
| CT09 | NAWC-ZrxByNz film on silicon | NAWC |
| CT10 | NAWC-TIS-2/as-grown, boron-doped CVD Diamond | NAWC |
| CT11 | NAWC-TIS-3/as-grown, phosphorus-doped CVD Diamond | NAWC |
| CT12 | NAWC-Carbon nitride (CxNy) film on silicon | NAWC |
| CT13 | NAWC-Titanium nitride (TiN) film on silicon | NAWC |
| CT14 | Gold Mirror | AZ Technology, Inc. |
| CT15 | MgF2 Overcoated Aluminum Mirror | AZ Technology, Inc. |
| CT16 | Platinum Mirror | AZ Technology, Inc. |
| CT17 | First surface aluminum-coated levelized aluminum mirror | NASA LeRC |
| CT18 | ISS Solar Array Blanket Face Sheet | NASA LeRC |
| CT19 | Kapton H (4 layers of 5 mil) | AZ Technology, Inc. |
| CT20 | Silver/Teflon (5 mil) | AZ Technology, Inc. |
| VUV Samples | ||
| CV01 | Window Material with MgF2 AR Coating | Boeing (AL) |
| CV02 | Fused Silica Window | AZ Technology, Inc. |
| CV03 | Crystalline Quartz Window | AZ Technology, Inc. |
| CV04 | Lithium Fluoride (LiF) Window | AZ Technology, Inc. |
| CV06 | Magnesium Fluoride Window (MgF2) | AZ Technology, Inc. |
| CV07 | Sapphire Window | AZ Technology, Inc. |
| CV08 | VUV Neutral Density Filter, up | AZ Technology, Inc. |
| CV09 | VUV Neutral Density Filter, down | AZ Technology, Inc. |
| CV11 | Gold Mirror | AZ Technology, Inc. |
| CV12 | Platinum Mirror | AZ Technology, Inc. |
| CV13 | MgF2 Overcoated Aluminum Mirror | AZ Technology, Inc. |
| CV14 | OWS Mirrors – Gold/Fused Silica | NASA MSFC |
| CV16 | OWS Mirrors – Iridium/Fused Silica | NASA MSFC |
| CV17 | OWS Mirrors – MgF2/Al/Fused Silica | NASA MSFC |
| CV18 | OWS Mirrors – Platinum/Fused Silica | NASA MSFC |
| CV19 | Iridium | NASA GSFC |
| CV21 | SiC | NASA GSFC |
| CV22 | Boron Carbide | NASA GSFC |
| CV23 | Al + MgF2 | NASA GSFC |
| CV24 | Boron Carbide | NASA GSFC |
| CV26 | CVD Diamond | NASA GSFC |
| CV27 | CVD-SiC | NASA GSFC |
| CV28 | Iridium | NASA GSFC |
| CV29 | Window Material with MgF2 AR Coating | Boeing (AL) |
| CV31 | Ir/Si Multilayer | NASA GSFC |
| CV32 | ULTEM, pure | College of William & Mary |
| CV33 | ULTEM / 10% BTO | College of William & Mary |
| CV34 | ULTEM / 20% BTO | College of William & Mary |
| CV36 | RM-550-IB Baffle Coating | AZ Technology, Inc. |
| CV37 | MLS-85-SB Baffle Coating | AZ Technology, Inc. |
| CV38 | Alodine Baffle | AZ Technology, Inc. |
| CV39 | Black Anodize Baffle | AZ Technology, Inc. |
| Passive Samples | ||
| CP01 | AO Resist. Diam.-like Nanocomp. Coatings (DYLYNTM) DLN-undoped | USAF Phillips Laboratory |
| CP02 | AO Resist. Diam.-like Nanocomp. Coatings (DYLYNTM) DLN-30% Ti doped | USAF Phillips Laboratory |
| CP03 | YB-71P, Zn2TiO4-Potassium silicate thermal coating | IIT Research Institute |
| CP04 | Z-93SC55 (Z-93 no longer produced. See AZ-93) | IIT Research Institute |
| CP05 | S13GP/LO-1, Encapsulated ZnO in methyl silicone | IIT Research Institute |
| CP09 | Al 1st Surface Mirror Contam Monitor | NASA LeRC |
| CP10 | AZWEC-2I | AZ Technology, Inc. |
| CP11 | AZBEC-1 | AZ Technology, Inc. |
| CP12 | Z24P binder w/ZnO pigment + 2% Sodium Salicylate by wt | Boeing (WA) |
| CP16 | Six layer stack on Si-wafer | Lockheed Martin |
| CP17 | Kapton (4 layers) | AZ Technology, Inc. |
| CP18 | TCOH-COTM – “6u” glass fabric | RSC Energia, Moscow |
| CP19 | Beta Cloth | Rocketdyne |
| CP20 | Black marking-Metalphoto | Rocketdyne |
| SP11, CP Plate 1 | Defected Al on Kapton | NASA LeRC |
| SP15, CP Plate 1 | EIC Electrochromic Coating | NASA GSFC |
| SP26, CP Plate 1 | EVA Label – Blue | Boeing (TX) |
| SP27, CP Plate 1 | EVA Label – Red | Boeing (TX) |
| SP28, CP Plate 1 | EVA Label Decal | Boeing (TX) |
| SP12, CP Plate 1 | ISS Solar Array Blanket Face Sheet | NASA LeRC |
| SP16, CP Plate 1 | OCLI coating over white Tedlar | NASA GSFC |
| SP25, CP Plate 1 | White Paint Z24P Binder w/ZnO Pigment | Boeing (WA) |
| SP30, CP Plate 2 | ATR Crystal-Germanium | AZ Technology, Inc. |
| SP,29 CP Plate 2 | ATR Crystal-Zinc Selenide | AZ Technology, Inc. |
| SP24, CP Plate 3 | Silver Teflon 5 mil 2-1/2″ x 3/4″ | Boeing (WA) |
| SP24, CP Plate 4 | Silver Teflon 5 mil 2-1/2″ x 3/4″ | Boeing (WA) |
