TEMP 2000A, Portable Emissometer/Reflectometer

AZ Technology’s TEMP 2000A handheld emissometer/reflectometer is the recognized replacement for an aging Gier-Dunkle DB100 as suggested on page 23 of the following 2005 NASA Technical Paper.

The AZ Technology TEMP 2000A Portable Emissometer/Reflectometer is compact, lightweight, rugged, and ergonomically engineered for ease of use in the field or in the laboratory to determine ambient temperature total emittance.

The TEMP 2000A can be conveniently used in a laboratory setting (top right image) where samples can be sat atop the instrument and left while repeated measurements are being taken. The TEMP 2000A can be used as a portable unit (bottom right image) via use of a battery pack and vest.

The TEMP 2000A, by virtue of an advanced optical system, provides a portable emissometer/reflectometer that performs total hemispheric reflectance measurements from less than 3 to greater than 35 micrometers wavelength and is not limited in wavelength range due to filters, windows, or coatings, placed in the optical path. The TEMP 2000A optical system has been designed to minimize losses, to facilitate and maintain optical alignment, and to utilize the features of AZ Technology’s patented ellipsoid collector that allows compactness for portability, efficiency, and measurement accuracy. The TEMP 2000A provides improved performance and maintainability over the no longer produced Gier Dunkle DB-100 IR Reflectometer** and in accordance with the ASTM E408 standard.

The table below lists specifications for the TEMP 2000A.

Specifications

Wavelength <3um to >35um (not limited by filters, windows, etc.)
Measurement accuracy (for specular and diffuse samples) ± 1% of full scale for gray samples
± 3% of full scale for non-gray samples
Repeatability 0.5% of full scale or better
Sample type Any Sample, including foils, insulators, etc.
Sample size and geometry Flat Surfaces: ≥ 0.4 inches (1 cm) diameter
Concave Surfaces: ≥ 6.5 inches (16.5 cm) diameter
Convex Surfaces: ≥ 1 inch (2.5 cm) diameter
Sample temperature Room Temperature, Ambient
Displayed properties Infrared Reflectance
Normal Emittance (300K)
Hemispherical Emittance (300K)
Readouts Digital LCD panel meter
Selectable IR emittance or reflectance display
Measurement range (reflectance) 0.00 to 1.00
Dimensions Optical Head: 5.25″ diameter x 6.8″ long
Control and Display Unit: 4.5 x 7.75 x 7 inches

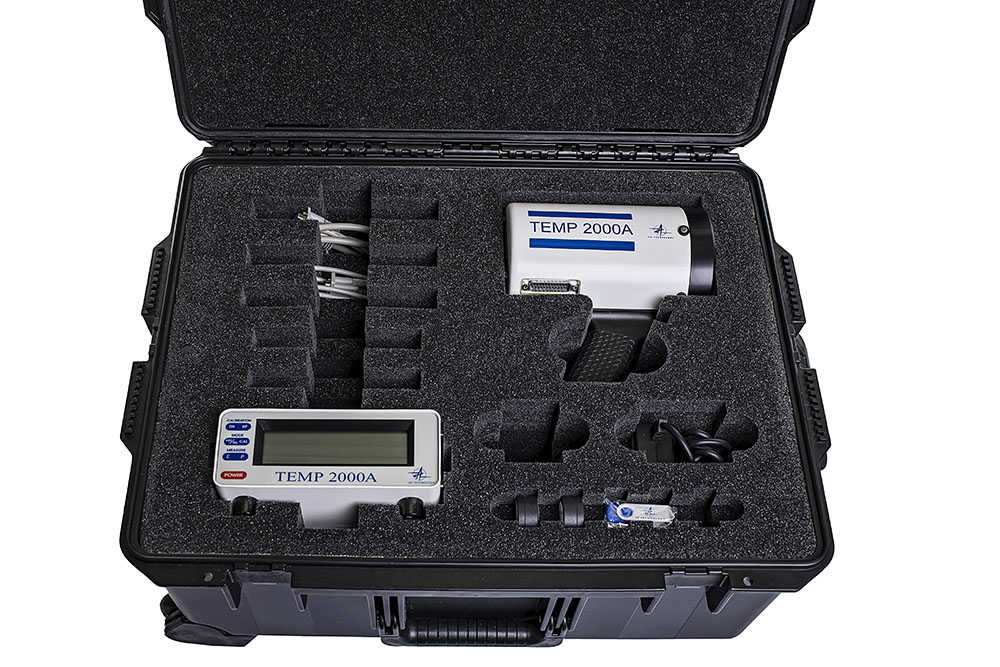

Carry Case: 12.5 x 17 x 11 inches
Warranty 1 year parts and labor
