TESA 2000

The TESA may also be worn portably with a battery pack.

TESA 2000, Portable Emissometer/Reflectometer and Solar Reflectometer

Note: For information on AZ’s measurement services for reflectance, emittance and SRI toward LEED certification, see Optical Measurement Services.

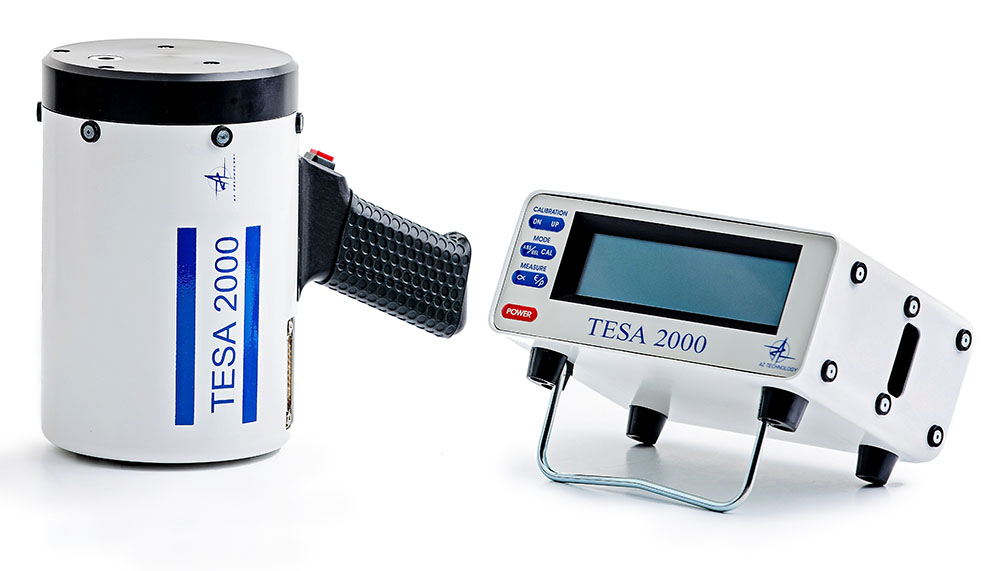

AZ Technology’s TESA 2000 Portable Emissometer/Reflectometer and Solar Reflectometer, is compact, lightweight, rugged, and ergonomically engineered for ease of use in the field or in the laboratory to determine ambient temperature total emittance and solar reflectance of test surfaces.

The TESA 2000 can be conveniently used in a laboratory setting (top right image) where samples can be sat atop the instrument and left while repeated measurements are being taken, or as a portable unit (bottom right image).

The TESA 2000 provides in a single unit:

1) A portable emissometer/reflectometer that performs optically integrated total hemispheric reflectance measurements from less than 3 to greater than 35 micrometers wavelength. Thus, performing the same measurement as the TEMP 2000A (the recognized replacement for the no longer produced Gier Dunkle DB-100 IR Reflectometer**), providing improved emittance determination performance and maintainability, and in accordance with the ASTM E408 standard.

2) A portable solar reflectometer that performs optically integrated total hemispheric reflectance measurements compatible with ASTM E903.

The TESA 2000 optical system has been designed to minimize losses, to facilitate and maintain optical alignment with compactness for portability, efficiency, and measurement accuracy. The instrument is fully portable and can be used in the most remote locations. The instrument is available with carrying cases (which will fit in the overhead bin of most jet aircraft), rechargeable batteries, battery charger, instrument inspection head, display unit, and an operator vest.

The table below lists specifications for the TESA 2000.

Specifications

Emittance wavelength	<3um to >35um (not limited by filters, windows, etc.)
Reflectance wavelength	250 to 2500 nm
Measurement accuracy (for specular and diffuse samples)	± 1% of full scale for gray samples ± 3% of full scale for non-gray samples
Repeatability	± 0.5% of full scale or better
Sample type	Any Sample, including foils, insulators, etc.
Sample size and geometry	Flat Surfaces: ≥ 0.4 inches (1 cm) diameter
Sample temperature	Room Temperature, Ambient
Readouts	Digital LCD panel meter Selectable solar reflectance solar absorptance and IR reflectance/emittance display
Measurement range (reflectance)	0.05 to 1.00
Dimensions	Optical Head: 5″ diameter x 8″ long Control and Display Unit: 7.5 x 5.5 x 3 inches Battery Box: 7.5 x 6.25 x 4.0 inches Carry Case: 12.5 x 17 x 11 inches
Warranty	1 year parts and labor

*Note: terms reflectance, emittance and absorptance and terms reflectivity, emissivity and absorptivity are often used interchangeably. **The TESA 2000 represents an excellent option for replacing a Gier Dunkle DB100 while adding more capabilities and increased portability.
